MYC-W35 Paper Bowl Forming Machine

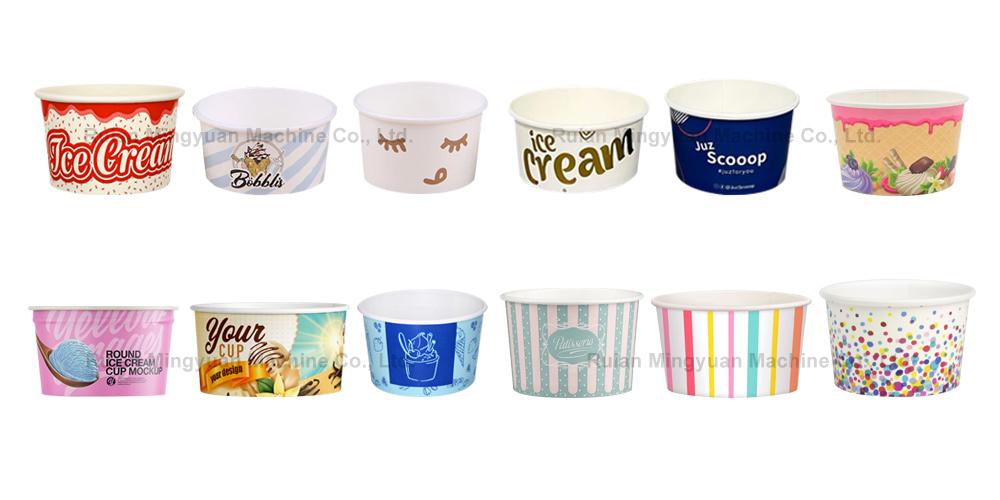

Sample display：

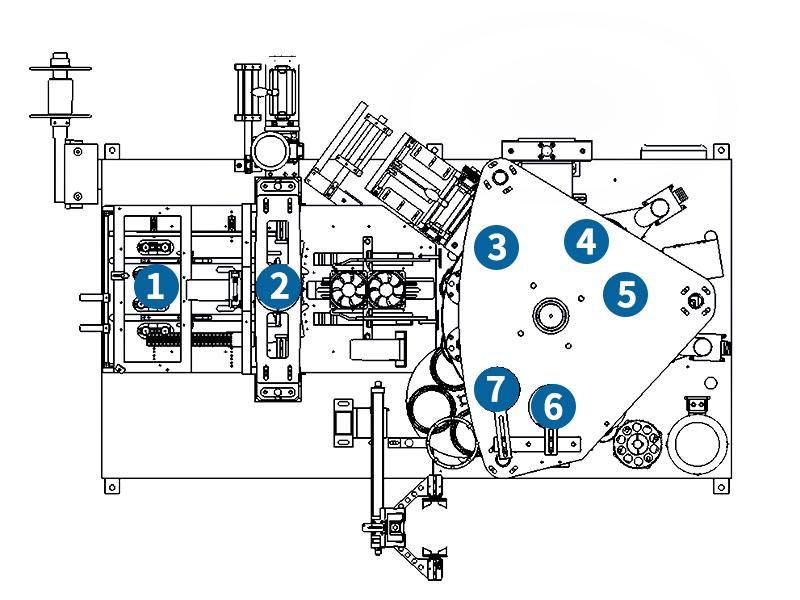

Machine structure：

Product Description：

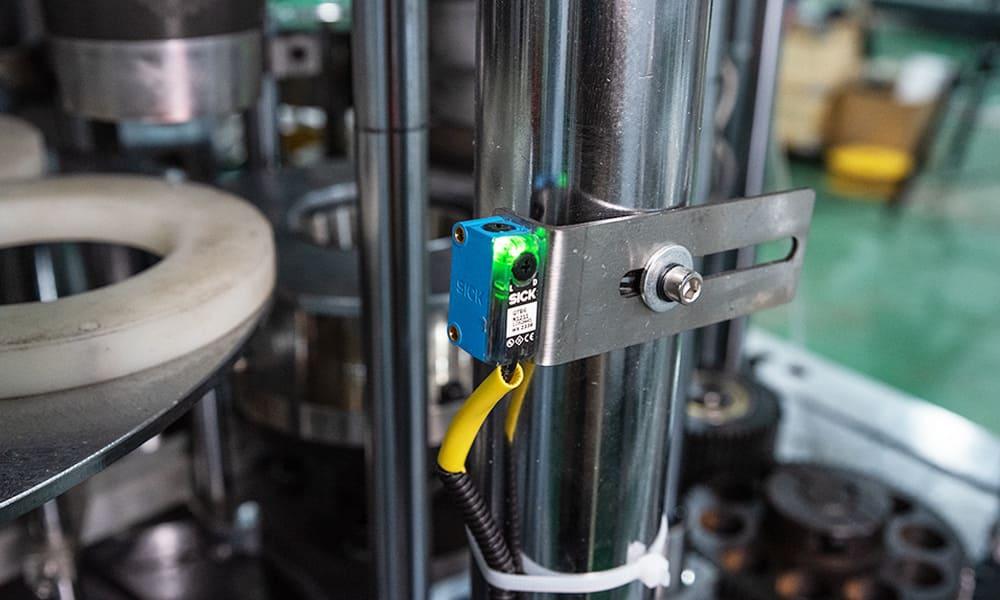

It has the advantage of fast speed 60-80 pieces per minute .The machine comes with PLC controlsystem, sensor failure detecting and it stops working automatically if the machine has operativelyimgrebled and it can safety.The whole machine adopts oil lubrication and circulation system, servomotor, Open cam drive and full gear drive system, which make it more accurate and stable.Robot handcollecting and counting system can be used to pack multiple sizes of bowls, which greatly saves laborcosts.

Model	MYC-W35 Automatic Paper Bowl Forming Machine
Machine	Paper bowl machine
Speed	60-80 pieces per minute
Paper Cup Size	Page 4 For Bowl Size Detail
Machine Size	2700x1610x2000mm
Machine Weight	2400 kg

Servo Motor：The bottom paper feeding is controlled by servo motor and stepping motor, which greatly improve paper feeding in high precision and high efficiency way.(more stable ,less troubles and save bottom paper)
Control Panel：It adopts PLC controller and touch screen (man -machine interface)all the working parameters can be setup on the control panel which is convenient for parameter setting and adjusting.(easy operate)

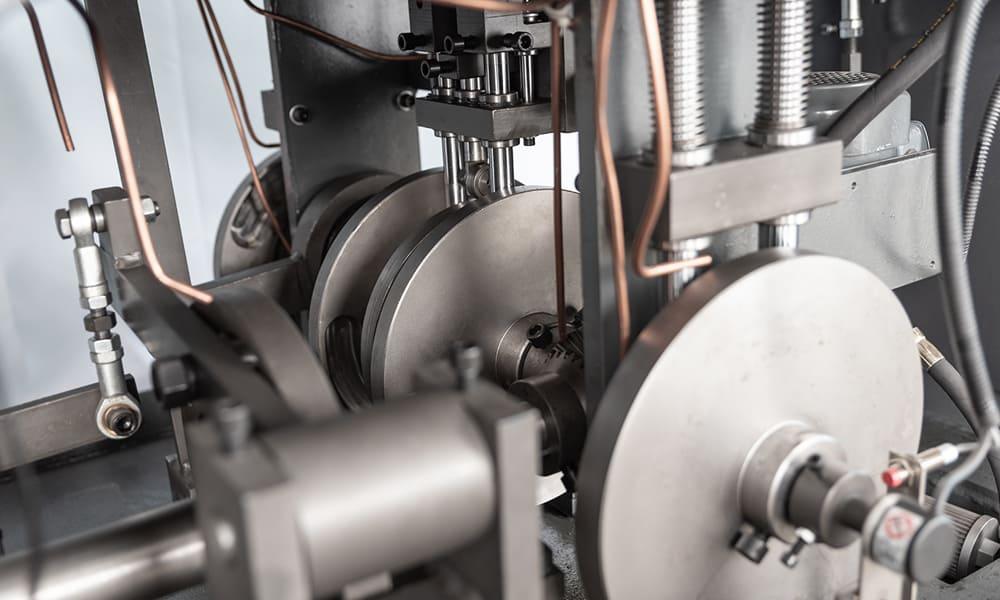

Single Main Shaft：All Cams building on Main shaft which keep sure machine running stable and spare without out of location
