MYC-D Double Wall Paper Cup Sleeve Machine

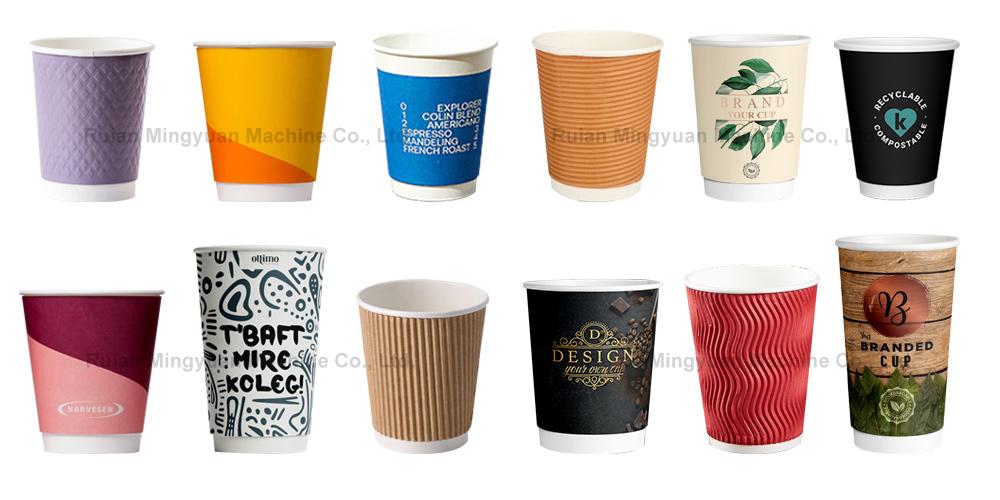

Sample display：

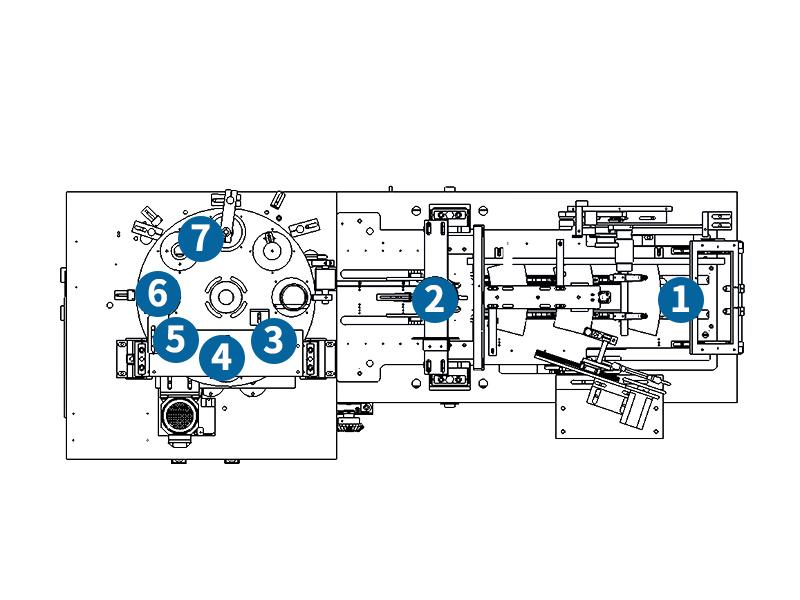

Machine structure：

Product Description：

MYC-D intelligent cup sleeve machine adopts an open intermitent indexing mechanism, gear transmis.sion, longitudinal axis structure, and a hot melt adhesive system. lt can produce white cardboard, corru.gated paper, etc. at a speed of 50-60 pcs/min. The whole machine adopts an oil lubrication system tomake the operation of each mechanical component more stable. it can complete the whole process ofpaper fan feeding, edge sealing, sleeve conveying, automatic oil circulation, cup stacking, etc.

Model	MYC-D
Machine	Double Wall Paper Cup Machine
Speed	50-60 pieces per minute
Paper Cup Size	4 - 16 oz cup; 20 - 50 oz bowl
Machine Size	2700*1460*1930 mm
Machine Weight	1550 kg

Hot Melt Glue System: Servo motor driver pastes hot melt glue for side sealing, more accurately and stably.
Servo Motor Gluing Unit: Spray the glue to the sleeve for sticking the single wall cups, it is controlled by servo motor, more accurate and stable.
Reverse Paper Suction Unit: It can suck down different paper materials like the normal and ripple corrugated paper fan easily.
